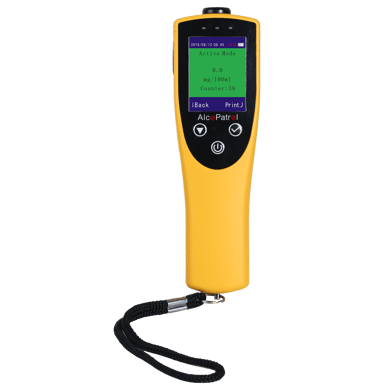

Law Enforcement Alcohol Tester

with Bluetooth print to Portable Thermal printer

AP4020

• High-Precision Fuel Cell Sensor: Electrochemical, alcohol-specific sensor for accurate and reliable testing.

• 2.4” TFT Display: Clear QVGA color screen with simple 3-key operation.

• Dual Test Modes: Supports Active and Passive testing modes.

• Auto Warm-up & Flow Detection: Automatic chamber/sensor warm-up with intelligent breath flow monitoring.

• Large Memory Storage: Stores up to 28,000 test results with ID and time stamp.

• USB Data Transfer: Easy download of records to PC via USB connection.

• Bluetooth Printing: Supports optional portable Bluetooth thermal printer.

• Portable & Rugged Design: Lightweight body with IP54 protection class for field use.

• Rechargeable Battery: Built-in Li-ion battery for mobile operation.

• Smart Data Entry: Input police name, driver name, and vehicle number directly on device.

• Certified Quality: CE/EMC, USA DOT NHTSA, AS 3547:2019, EN 15964, US FDA approved.

Product Description:

Professional Breath Alcohol Tester with Electrochemical / Fuel Cell Sensor

• Measurement Range: 0.000mg/L ~ 4.500mg/L

• Resolution: 0.001mg/L

• Warm-up Time: 6 seconds

• Analysis Time: Less than 10 seconds

• Blowing Time: 5 seconds (≥12L/min flow)

• Recovery Time: 1–5 minutes (depends on alcohol concentration)

• Calibration Interval: Every 12 months

• Operating Temperature: -5°C to +50°C (optimum 5°C to 40°C)

• Storage Conditions: 0°C to +55°C, 30–90% RH

• Memory Capacity: 28,000 records with ID & timestamp

• Printer: Bluetooth thermal printer (optional)

• Protection Class: IP54

• Dimensions: Approx. 200 × 60 × 34.5 mm

• Weight: 179 g

Packing Includes:

• Soft Carry Bag Case

• User Manual

• 2 pcs Blow Tubes

• USB Cable

Optional Accessories:

• Plastic Carry Case

• Bluetooth Printer

• 180 Mouthpieces
