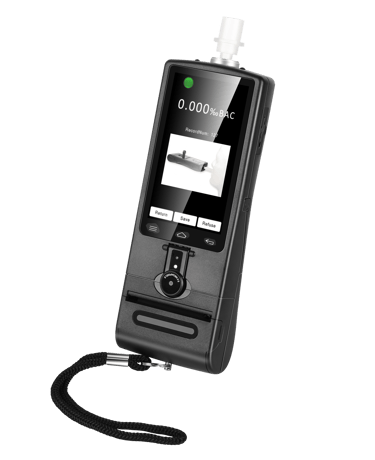

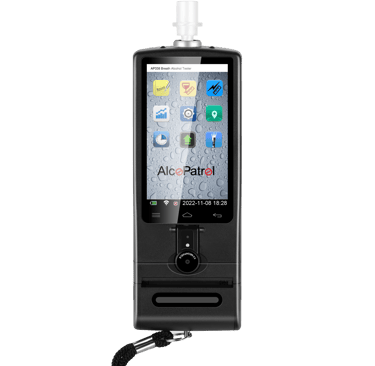

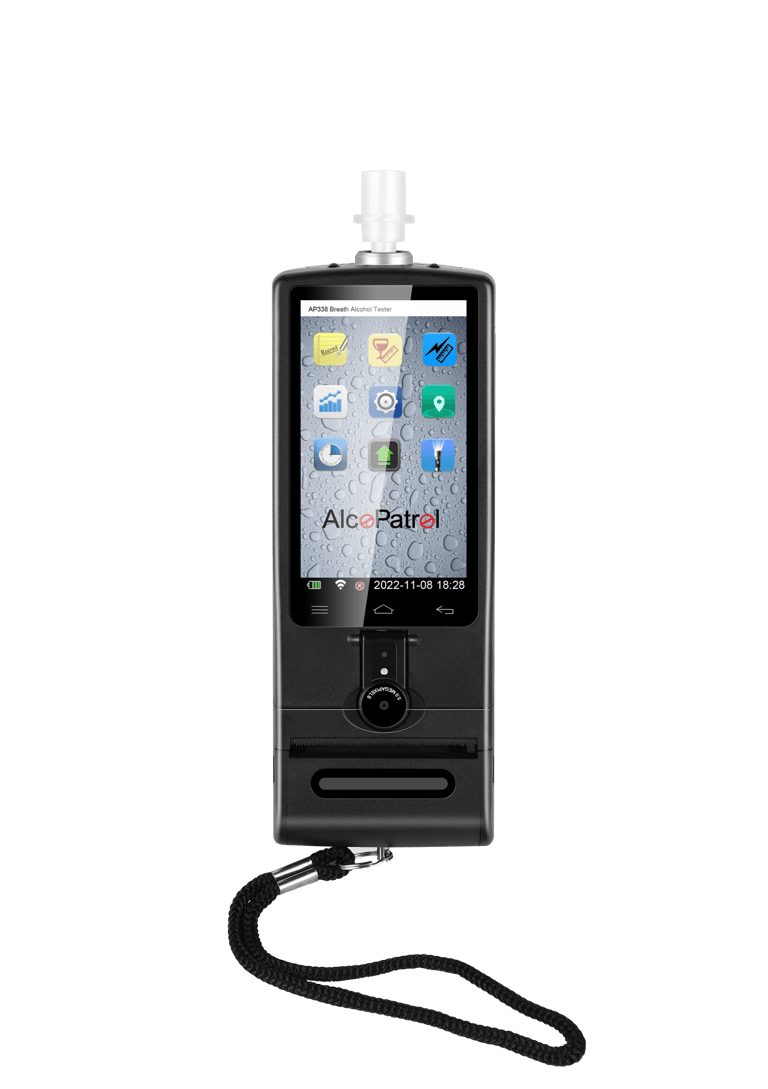

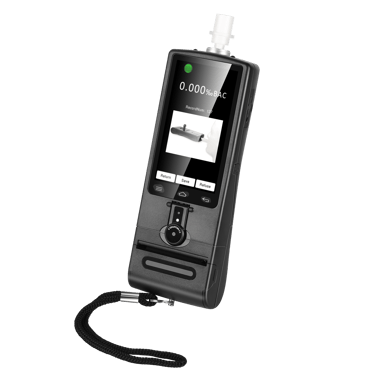

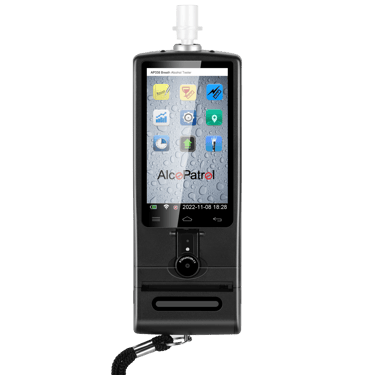

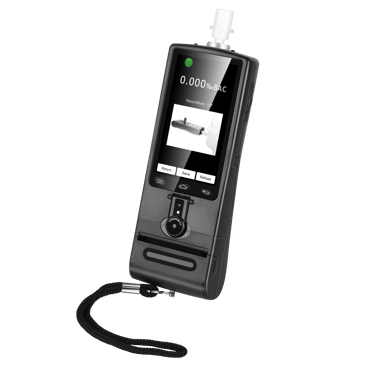

Alcopatrol AP338 NEW Law Enforcement Alcohol Tester
Built-in Printer/Camera to capture photo
( Fuel Cell Sensor)
Selling points for tender:
1. USA DOT tested; USA FDA; EN 15964,
2. Camera, take photo during blowing to the breathalyzer.
3. Build in printer
4. 4.5 Inch LCD
5. Capacitive touch panel
6. Records memory: 150,000 records
7. GPS location detection
8. PC download software shows results on Map
9. Wi-Fi connectivity
10.Upload test records to server.
11.USB type C for charging and connect to computer
12.Blowing directions front stream
13.Interchangeable calibrated sensor module.
14.One way valve Mouth piece
15.LED indicator on blowing chamber for insert mouth piece.
16.LED light torch for nigh time law enforcement
17.Time/date automatically sync by GPS.
18.IP54 with Silicone rubber protection case
Product Specification:
1. product description: Law Enforcement Alcohol Tester
with Electrochemical / Fuel Cell Sensor
2. Built in thermal printer: Heat transfer printer
3. Display: 4.5 Inch iPS LCD display
4. Input: Touch Panel
5. Quick and precise
analysis:
Ensure a high sensitivity to alcohol
and stable & reliable working life.
6. Data download: PC down via USB port.
7. Mouthpiece: Easy to replace a new mouthpiece very convenient and hygiene.
8. Power Supply: Rechargeable 3.7 V Li-ion battery
9. Heat warm up: Chamber & Sensor warm up automatically
10. Auto flow monitoring: Flow detect automatically
11. Unit setting: mg/L、mg/100mL、%BAC、‰BAC, mg/ml, g/l
12. Display range: 0~0.9% BAC or 0~9.0‰BAC or 0~4.5mg/L or 0.0-900 mg/100ml
13. Long Term Storage
condition:
Temperature: -20 Degree C to +55 Degree C.. Humidity: 30 to 90% RH
14. Operating Temperature: From -20°C to +45 °C, ( 5°C to +40 °C for optimum operation)
15. Memories: Min. 150,000 memories with full information:- Drive name, vehicle no., inspector name, test result
with time stamp, date and time, location, instrument no., Calibration date, test no. etc...
16. Measurement precision: Result range Initial inspection Regular inspection
< 0,400 mg/L or
0,080 %BAC
0,020 mg/L or
0,004 %BAC
0,032 mg/L or
0,006 %BAC
(0,400 ÷ 1,000) mg/L or
(0,080 ÷ 0,200) %BAC
5 % result 8 % result
(1,000 ÷ 2,000) mg/L or
(0,200 ÷ 0,400) %BAC
10 % result 15 % result
> 2,000 mg/L or
0,400 %BAC
20 % result 30 % result
17. Alert level setting: Set “drunk driving” and “driving while intoxicated” by a supervisor password.
18. Size and weight: Approx. 208*78*37mm/360g
19. Calibration 12 months
20. Standard aApproval: CE/EMC; USA DOT NHTSA; EN 15964, US FDA and meets AS 3547: 2019
