Professional Accuracy: High-precision electrochemical Fuel Cell Sensor for reliable alcohol testing.
3 Testing Modes: Supports Active, Passive, and Screening test modes in one device.
Smart TFT Display: 2.4” color TFT screen with simple 4-key operation.
Auto Warm-up & Flow Detection: Automatic chamber/sensor warm-up and intelligent breath flow monitoring.
Large Memory Storage: Stores up to 28,000 records with ID and time stamp.
Bluetooth Printing: Compatible with portable Bluetooth thermal printer (optional).
USB Data Download: Easily transfer test records to PC via USB connection.
Portable Field Design: Rechargeable lithium battery with USB charging for mobile use.
Certified Quality: CE/EMC, USA DOT NHTSA, EN15964, AS3547:2019, and US FDA approved.
Product Description:

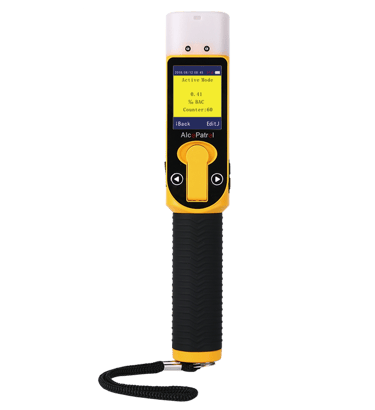

Professional Breath Alcohol Tester with Electrochemical / Fuel Cell Sensor
2.4” TFT QVGA color display with easy 4-key operation
Supports Active, Passive, and Screening test modes
Automatic chamber & sensor warm-up with intelligent flow monitoring
Measurement Range: 0.000mg/L ~ 4.500mg/L
Resolution: 0.001mg/L
Warm-up Time: 6 seconds after power on
Analysis Time: Less than 10 seconds
Large memory capacity: 28,000 records with ID & time stamp
USB data download to PC
Bluetooth thermal printer support (optional purchase)
Rechargeable lithium battery with USB charging
Information input for police name, driver name, and vehicle number
Operating Temperature: -5°C to +50°C
Calibration Interval: Every 12 months
Dimensions: Approx. 280 × 50 × 41 mm
Weight: 368 g
Packing Includes:
User Manual
5 pcs Blow Tubes
5 pcs Passive Test Cups
Charger
USB Cable
